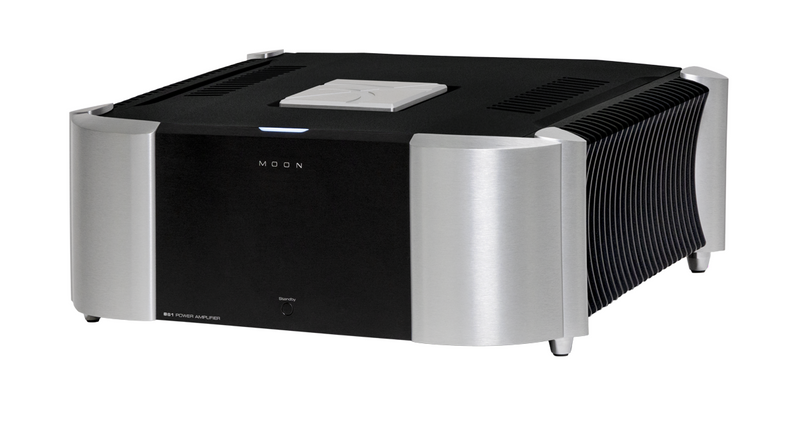

The MOON 861 is a power amplifier with the pedigree of the distinguished MOON 888 and the wholistic design philosophy of the North Collection.
- MDCA – MOON Distortion-Cancelling Amplifier
- No Global Feedback Design
- MOON Transistors
- Dual Mono Configuration
- Monaural Mode Toggle Switch
- MOONLink
- Multicolour LED Indicator
- Output Power (Stereo 8 Ω) 300 W
- Output Power (Stereo 4 Ω) 600 W
- Output Power (Mono 8 Ω) 800 W
- Input Sensitivity 1.4 V
- Input Impedance 47 kΩ
- Gain 31 dB
- Frequency Response 2 Hz – 100 kHz (+0 dB / –3 dB)
- Crosstalk –119 dB
- Signal-to-Noise Ratio 119 dB
- Total Harmonic Distortion + Noise (@ 1 W) 0.002 %
- Total Harmonic Distortion + Noise (@ 300 W) 0.001%
- Intermodulation Distortion 0.002%
- Damping Factor 900
- Power Consumption (Idle) 85 W
- Power Consumption (Full Power Standby) 75 W
- Power Consumption (Low Power Standby) 1.25 W
Dimensions 18.95" W x 8.26" H x 24" D
Warranty: 10 years limited parts and labour (once registered with manufacture)
